Tube style CD player that signals
the dawning of a new digital sound.
We made the KRYNA Aube to commemorate our 30th anniversary, in response to the long-felt need of the KRYNA fans. The “Aube” is a tool which is developed solely to regenerate the information that is essential to express holographic sound suggested by KRYNA.
It is one part of holographic materials that are proudly linked in with KRIINA’s Amp, speaker and their accessories.

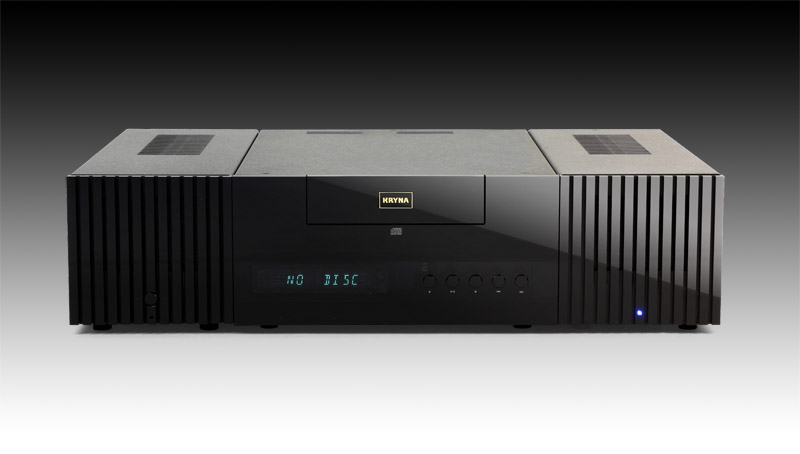

It has a dignified appearance. It is a CD player that contains the essential quality and grace of re music reproduction.

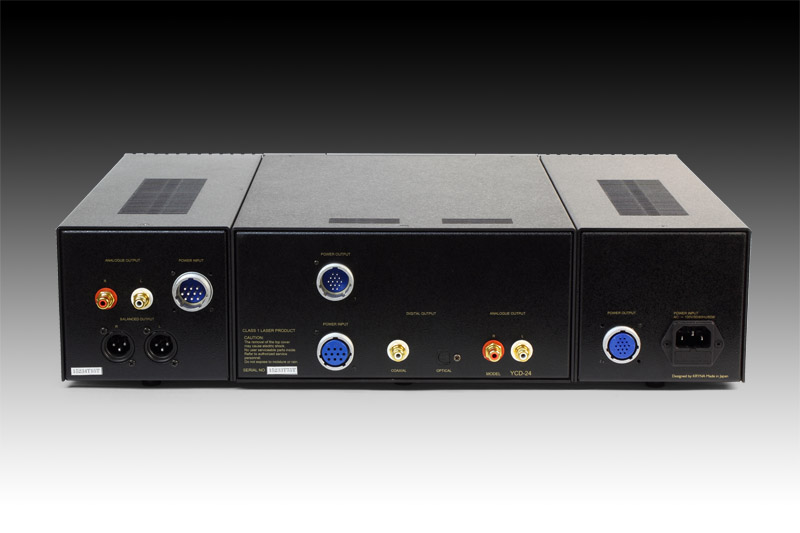

The most distinctive feature of the Aube is that it has a separate power section that is loaded with power transformer and transport section. By separating the power section that contains power transformer, it minimizes the interference of noise caused by vibration and electromagnetic waves.
Furthermore, for the chassis section, a non-magnetic aluminum board that cannot be magnetized, is used. This not only minimizes the internal mutual inference but also impact of magnetic field from outside.
By reducing the impact that hinders reproduction of faint signals from CD as much as possible, we aim to create an environment where faithful regeneration of information without any unnecessary color is possible.

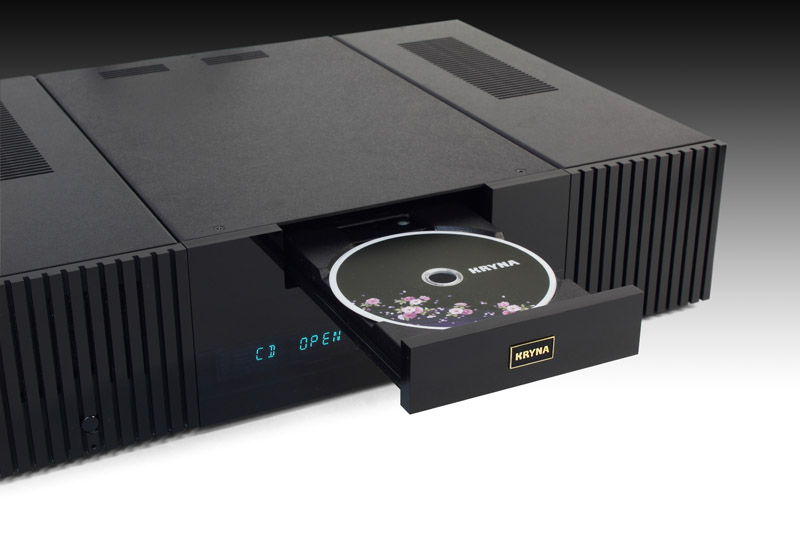

For the drive, Philips’ drive mechanism is used to allow fine and accurate reading and support reproduction of standard CD and HDCD.
In the heart of D/A converter, Burr-Brown D/A converter tip (24bit/96kHz) is used. Furthermore, it is possible to add tube style buffer (optional) that uses three ECC83 to expand sound field.
The tube style buffer is separated from the power section and transport section. It is a pure signal circuit that is completely separated from the vibrating parts such as power transformer and drive mechanisms. By regenerating sound without missing fine signals with the tube style buffer, it can reproduce the depth and phase sensitivity that is close to analogue sound.
ACD-24 (Main body + power) ACD-24BF (Buffer Amp) |
|
Output level | 2V P-P (RCA) 2V P-P (RCA: With buffer Amp) 4V P-P (XLR: With buffer Amp) |
Digital output | S/PDIF (COAXIAL·OPTICAL) |
Frequency | 2∼20kHz +0.5dB |
S/N ratio | >104dB >93dB (RCA: With buffer Amp) |
Dynamic range | 104dB |
Channel separation | > 96dB |
Total harmonic distortion rate | < 0.002% (1kHz) |
Power requirement | 100V - 50/60Hz |
Accessories | Remote control, power cable, junction cable |
Dimension (excluding protruding part) |
W240 × D350 × H120 mm (main body) W120 × D350 × H120 mm (power part) W120 × D350 × H120 mm (buffer Amp) |
Weight | 3.2 Kg (Main body) 2.0 Kg (Power part) 1.6 Kg (Buffer Amp) |
* Vacuum tube for buffer Amp 12AX7 (ECC83) x 3 tubes
* The specification, standard, design and price may change due to improvements,
etc. without prior notice.
